Frequency :

Output power :

Modulation:

Power Supply:

Antenna:

Microphone:

Audio dynamic range compression ratio:

Dimensions:

UHF

+10 dBm

WFM

110 / 220 VAC

180 mm, external

extension, Knowles

15 db

2 x (32 x 13 x 8)mm

Frequency :

Output power :

Modulation:

Power Supply:

Antenna:

Dimensions:

Connection:

UHF

+10 dBm

WFM

telephone line

180 mm, external

32 x 13 x 8 mm

in series with telephone set

Frequency :

Output power :

Modulation:

Power Supply:

Antenna:

Microphone:

Dimensions:

Operation time:

UHF

+4 dBm

WFM

3VDC (1 x CR2032)

180 mm

built-in, Knowles

28 x 20 x 8 mm

24 hours

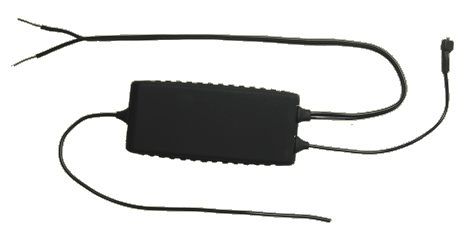

Frequency of the transmitter (setting with using STV-02):

Frequency setting accuracy (setting with using STV-02)

Output power :

Modulation:

Power Supply:

Consumption Current

Antenna:

Microphone:

Dimensions with waterproof case:

Dimensions of PCB only:

400 MHz ÷ 440 MHz

5 kHz

+18 dBm

WFM

6÷14VDC (External)

120÷60 mA

180 mm

Knowles

73 x 34 x 11 mm

35 x 26 x 7 mm

Frequency of the transmitter (setting with using STV-05):

Frequency setting accuracy (setting with using STV-05)

Output power :

Modulation:

Power Supply:

Operation time in standby:

Operation time in TX:
Antenna:

Microphone:

Dimensions :
Charger:
Charging time:

400 MHz ÷ 440 MHz

5 kHz

+20 dBm

WFM

3.6VDC (Internal Li-Pol battery 230 mA/h)

no less than 2 months

2 hours
180 mm

built-in, Knowles (optional - extension)

48 x 23 x 12 mm
5VDC, 500mA
~60 min
